Commutator Foar Jig Saw

De Commutator wurdt brûkt foar Jig Saw motor. NIDE is in profesjonele fabrikant en leveransier fan motorcommutator yn Sina. Us commutator-fabryk beslacht in gebiet fan mear dan 5,000 acres. Wy hawwe folsleine motor commutator eksport ûnderfining en produsearje ferskate soarten commutators, ynklusyf haak type, riser type, shell type, fleanmasine type, Jo kinne der wis fan wêze om te keapjen Commutator For Jig Saw fan ús fabryk en wy sille biede jo de bêste nei-ferkeap tsjinst en op 'e tiid levering.

Stjoer Inquiry

produkt Omskriuwing

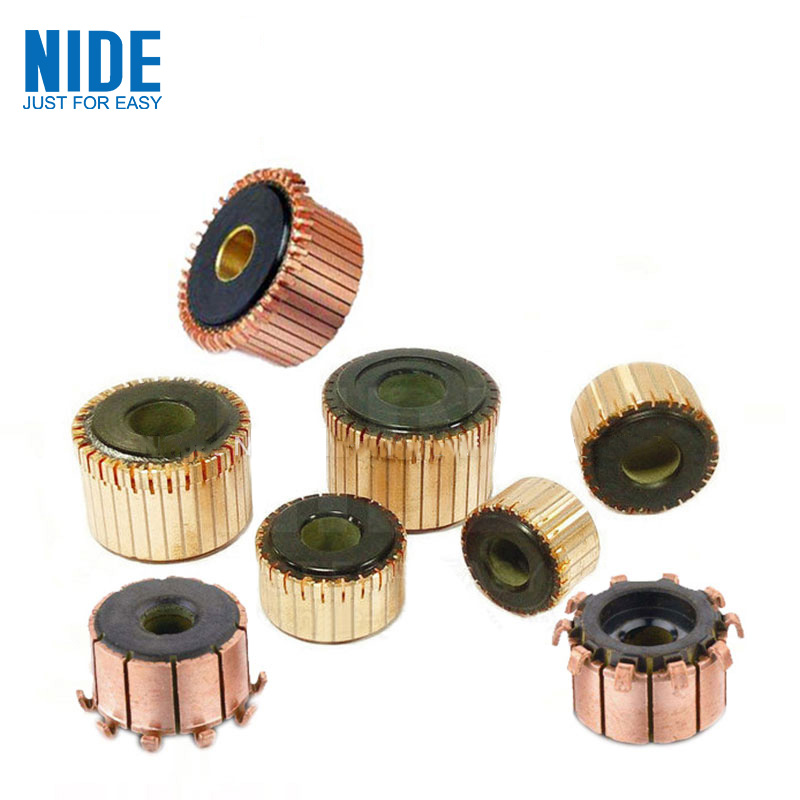

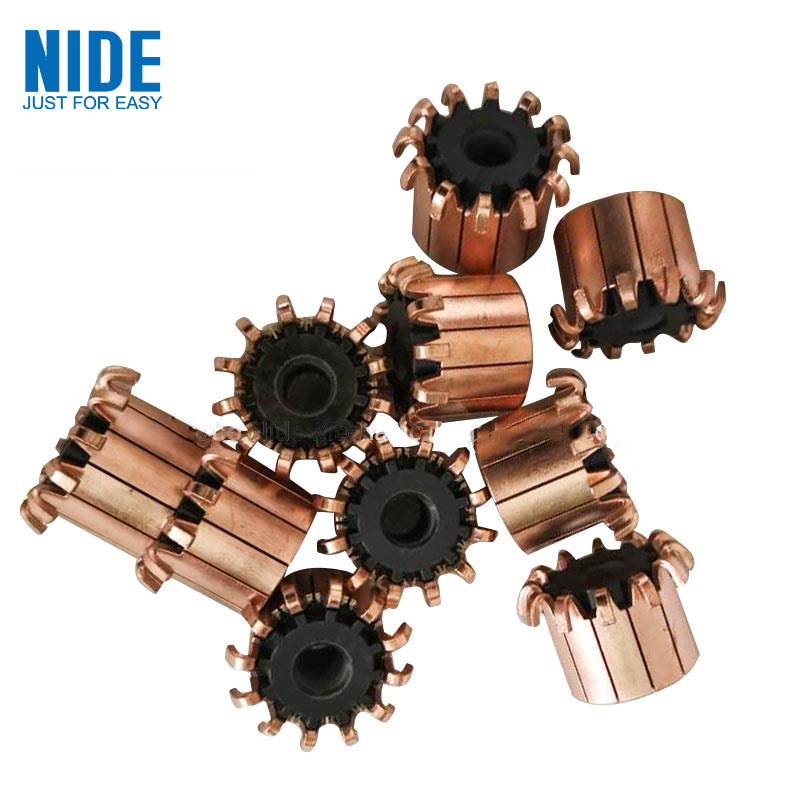

Commutator foar Jig Saw

1.Product Yntroduksje

Dizze kommutator is spesjaal ûntworpen foar puzzelmotoren, mei materialen fan hege kwaliteit, mei goede prestaasjes, leech lûd en lange libbensdoer.

2. Produktparameter (spesifikaasje)

Materialen	0,03% of 0,08% sliver koper of oanpast
Diminsje	Oanpast
Commutator type	Hook type / Raiser type
Oanfraach	jilde foar auto-yndustry, macht ark, húshâldlike apparaten, en oare motors
Pakket	Geskikt foar lân- en seeferfier
Produksje kapasiteit	1000000pcs / moanne

Model nûmer.	OD (mm)	ID (mm)	Totale hichte (mm)	Segment Lengte (mm)	Haak/Riser dia. (mm)	Bar nr.
S-02001	37.5	Ï†13	24	20.5	38.5	32
S-03002	15.75	Ï†13	11.25	9.5	16	24
S-03003	24	Ï†9	17	14	25	24
S-03003B	24.5	Ï†10	17.5	14	25.5	24
S-03003C	24.5	Ï†10	17.5	14	25.5	24
S-02004	24	Ï†9	15	13	24.5	24
S-03004A	23.2	Ï†9	15	13	24	24
S-03005	24	Ï†9	17	14	25	24
S-03005A	24	Ï†9	17	14	25	24
S-03006	37.5	Ï†13	26	23	38.5	32
S-03007	25.5	Ï†10	17	14	26.5	24
S-03007B	25.5	Ï†10	17	14	26.5	24
S-03008	23.5	Ï†9	14	12	24	24
S-03009	24	Ï†9	16.6	14	29	24
DZQD-RZ32-010	28.5	Ï†12	17.5	16	34.3	24
S-03011	23.5	Ï†9	17.5	14	28	24
DZQD-RZ32-012	23.5	Ï†10	18	16.4	28.5	24
S-03013	23	Ï†8	16	14	23.5	24
S-03014	28.5	Ï†11	20	17	29.5	24
S-03015	22.5	Ï†9	17.5	17.2	30	10
S-03016	28	Ï†14	20	19.2	36.8	12
S-03016A	28	Ï†14.2	20	19.2	36.8	12
S-03017	28.5	Ï†9	17.5	15	29.5	24
S-03018	34.3	Ï†13	22	20.5	41.5	24
S-03019	24.5	Ï†10	17.5	14	25.5	24
S-03019A	24.5	Ï†10	17.5	14	25.5	24
S-03020	28.5	Ï†11	17	14	29.5	24
S-03021	20.5	Ï†10	18	13.5	30.5	12
QZQC-RZ12-022	20.5	Ï†10	17.8	13.5	26	12
S-03024	40.4	Ï†13	24	20	42	50
S-03025	23.2	Ï†8	17.5	17	30	12
QZQC-RZ32-026	20.2	Ï†8	14.6	14.1	25	16
QZQC-RZ32-026A	20.2	Ï†8	14.6	14.1	25.5	16
QZQC-RZ12-027	18.9	Ï†8	14.5	12.8	24	12
S-03028	15.5	Ï†7	11.4	11.7	20	9
S-03030	22.5	Ï†9.2	18	17.7	30.6	10
S-03031	22.5	Ï†12	21	20.5	30.5	10
S-03032	28.5	Ï†12	17.5	14.5	29.5	24
S-03033	30	Ï†10	20	17	35.5	24
S-03033A	30	Ï†11	21	18	36	24
S-03033B	30	Ï†11	21	18.5	36	24
S-03033C	30	Ï†11	21	18.5	36	24
JZQC-RZ32-037	22	Ï†8	16	14.2	27	16
S-03038	35.4	Ï†14	42.5	38	48	23
S-03038A	35.4	Ï†14	42.5	38	48	23
S-03044	22.5	Ï†10	17.5	17	28.5	10
S-03045	35.5	Ï†15.75	23.5	20	46	19
S-03046A	37.5	Ï†14	42	38	49.5	23
S-03046B	37.5	Ï†14	42	38	49.5	23
S-03047	45	Ï†15.5	50	44.4	62	21
S-03048	34	Ï†10.2	38.5	34.5	46.5	23
S-03050	15	Ï†5	16.5	15.5	20	12
